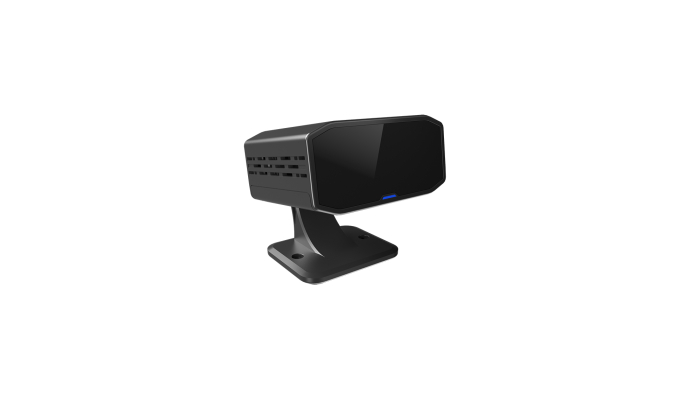

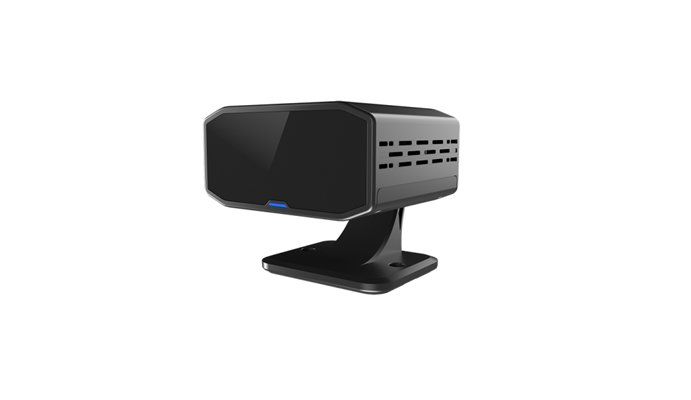

JC171 | DMS AI Camera

JC170 is a compact DMS camera that utilizes multiple visual AI algorithms. It can monitor driver attentiveness, warn the driver with audible alerts if signs of fatigue or distraction are detected, and output alert information. When connected to a management device, the data collected by the JC170 can be uploaded to the cloud-based platform for evidentiary purposes. The JC170 offers a variety of features to address different scenarios that require long hours behind the wheel, minimizing fatigue- and distraction-related accidents and lowering the risk of operating asset loss.

For more information

Specification

Network

Standard	4G LTE Cat.4
Bluetooth	BLE 4.0
Band	LTE-FDD: B2/B3/B4/B5/B7/B12/B17
	LTE-TDD: B38/B41 (100M)
	WCDMA: B2/B4/B5
	GSM: B2/B5/B8

Camera

Front Camera (Main)	1920×1080/25FPS/F2.2/Full color/85° (HFoV)
Peripheral Camera (Optional)	CIO1: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV)
	CIO3: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV)
	CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV)
	JC170: 1280×720/15FPS/F2.4/Monochrome/56° (HFoV)
Video Format	.ts & .mp4

Configuration

GNSS	GPS
Sensor	3-axis
Microphone	Support
Speaker	Support
Interface	Micro USB1, SOS1, TTL1, Relay1
Memory Support	TF card (Up to 256GB)
SIM Card Type	Nano
LED Indication	Red (Power), Blue (Cellular), Green (GPS)

Others Specs

Power Supply	Power cable: B+/ACC/GND
Operating Voltage	DC 9–30V
Operating Temperature	–20°C to +65°C
Storage Temperature	–30°C to +85°C
Device Weight	233g
Device Dimension	1096952mm
Certifications	CE/FCC/RoHS
