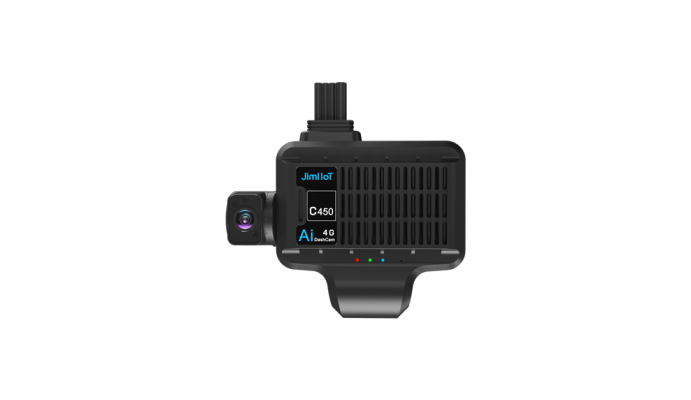

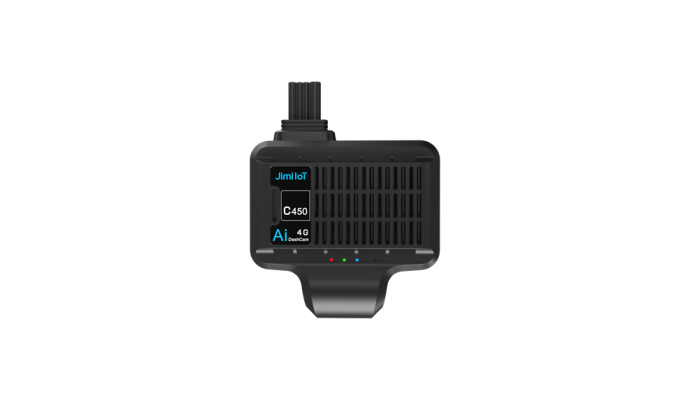

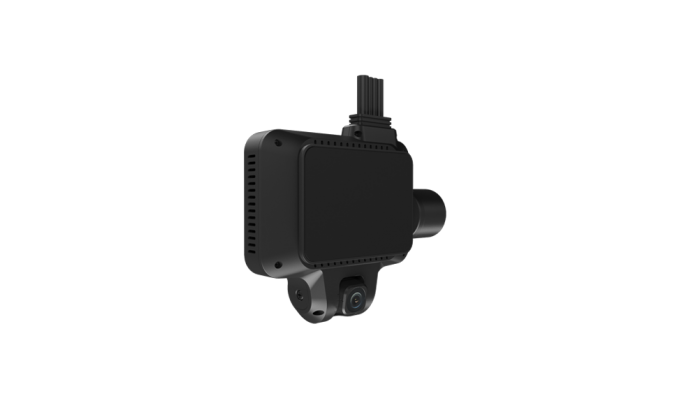

JC450 | Multi-Channel AI DashCam.

Video Visibility via Up to 5 Channels in Real-time, Advanced Driver Assistance (ADAS), Driver Fatigue/Distraction Monitoring (DMS), Critical Video to Cloud, Extended Storage for More Data

JC450 | 4G

JC450 Series is an LTE dashcam system designed specifically for use in commercial vehicles. This feature-rich camera system is capable of recording 4/5 separate channels simultaneously, and provides valuable ADAS and DMS algorithms that actively assist drivers increase awareness and safety on the road by providing real-time, actionable alerts. Video clips triggered by key events or the in-cab SOS button are saved to the cloud for later review or evidentiary support. Other features of this system, including support for peripheral sensors, the ability to connect via WiFi, and expanded on-device storage make the JC450 Series a perfect solution for a variety of applications across multiple industries..

Network

Standard 4G LTE Cat.4
Bluetooth BLE 4.0
Band LTE-FDD: B2/B3/B4/B5/B7/B12/B17
LTE-TDD: B38/B41 (100M)
WCDMA: B2/B4/B5
GSM: B2/B5/B8

Camera

Front Camera (Main) 1920×1080/25FPS/F2.2/Full color/85° (HFoV)
Peripheral Camera (Optional) CIO1: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV)
CIO3: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV)
CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV)
JC170: 1280×720/15FPS/F2.4/Monochrome/56° (HFoV)
Video Format .ts & .mp4

Configuration

GNSS GPS
Sensor 3-axis
Microphone Support
Speaker Support
Interface Micro USB*1, SOS*1, TTL*1, Relay*1
Memory Support TF card (Up to 256GB)
SIM Card Type Nano
LED Indication Red (Power), Blue (Cellular), Green (GPS)

Others Specs

Power Supply Power cable: B+/ACC/GND
Operating Voltage DC 9–30V
Operating Temperature –20°C to +65°C
Storage Temperature –30°C to +85°C
Device Weight 233g
Device Dimension 109*69*52mm
Certifications CE/FCC/RoHS
