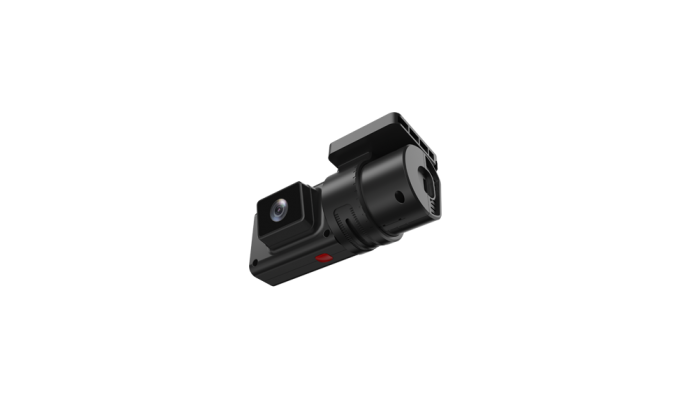

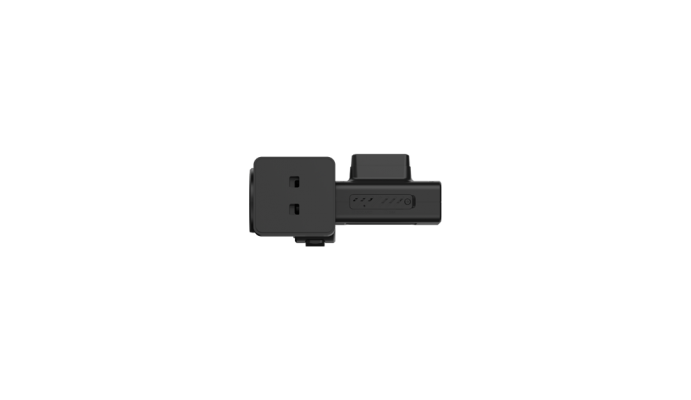

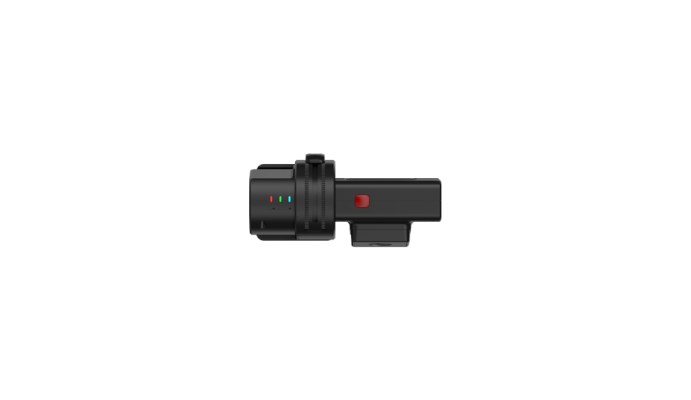

JC181 | Dual-Channel Dashcam

JC181 is a compact video telematics device that makes it easy to remotely manage your en-route fleets. It adds visibility to your fleet, along with powerful LTE connectivity and GNSS capability, and can record and store video footage and images on the device. You can watch live video, play back historical footage, and retrieve critical evidence when needed, from anywhere, at any time. By integrating video technologies, it helps ensure the authenticity, timeliness, and reliability of fleet management, making it an appropriate choice for light vehicles.

JC261 | An Upgrade of JC400 with AI

Specification

Network

Standard	4G LTE Cat.4
Bluetooth	BLE 4.0
Band	LTE-FDD: B2/B3/B4/B5/B7/B12/B17
	LTE-TDD: B38/B41 (100M)
	WCDMA: B2/B4/B5
	GSM: B2/B5/B8

Camera

Front Camera (Main)	1920×1080/25FPS/F2.2/Full color/85° (HFoV)
Peripheral Camera (Optional)	CIO1: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV)
	CIO3: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV)
	CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV)
	JC170: 1280×720/15FPS/F2.4/Monochrome/56° (HFoV)
Video Format	.ts & .mp4

Configuration

GNSS	GPS
Sensor	3-axis
Microphone	Support
Speaker	Support
Interface	Micro USB1, SOS1, TTL1, Relay1
Memory Support	TF card (Up to 256GB)
SIM Card Type	Nano
LED Indication	Red (Power), Blue (Cellular), Green (GPS)

Others Specs

Power Supply	Power cable: B+/ACC/GND
Operating Voltage	DC 9–30V
Operating Temperature	–20°C to +65°C
Storage Temperature	–30°C to +85°C
Device Weight	233g
Device Dimension	1096952mm
Certifications	CE/FCC/RoHS
