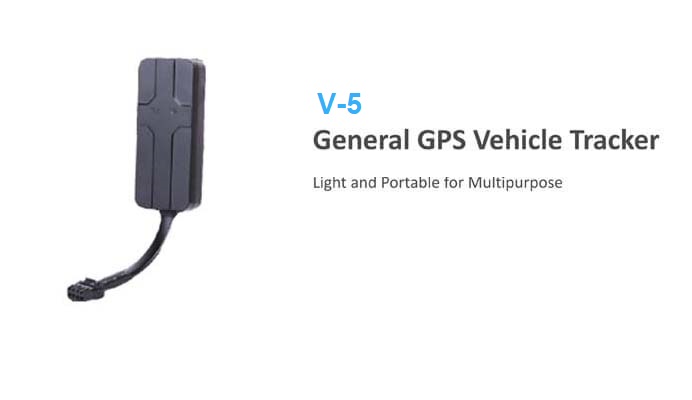

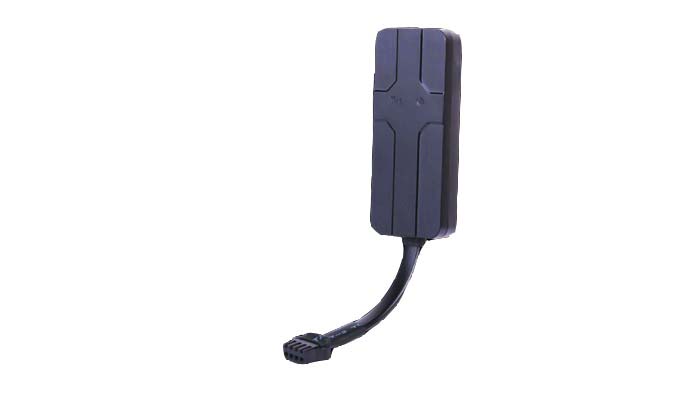

V5 GPS Tracker
Advanced 2G vehicle tracking device with real-time tracking with multiple alarm's.
Download Resources
V5 GPS tracker is a compact and efficient device designed for reliable location tracking in real time. Utilizing 2G connectivity, it offers essential tracking features suitable for personal vehicles and assets. With its user-friendly interface and simple installation, the V5 provides accurate positioning, geofencing capabilities, and historical logs for no network area. Ideal for those seeking an economical solution for monitoring their belongings, the V5 GPS tracker ensures you stay connected and informed at all times.
Precision Tracking
Combining GPS, GLONASS, and Galileo systems for <2.5m accuracy even in urban environments with high-rise interference.
2G Connectivity
Instant data transmission with, ensuring real-time updates even in remote areas with marginal coverage.
Wide Voltage Range
Operates flawlessly from 9V to 90V DC, making it compatible with everything from motorcycles to heavy-duty trucks.
Ideal Applications
Fleet Management
- Offline record in no network zone
- Driver behavior analysis
- Realtime data
Personal Vehicles
- Theft prevention
- Real time notifications
- Accurate Km.
Commercials Vehicle
- External battery protection
- External battery protection alerts
- Angle upload
Technical Specifications
Engineering excellence in every detail.
GPS Specifications
| Positioning System | GPS |
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Positioning accuracy | <2.5m CEP |
| Tracking sensitivity | -165 dBm |
| Acquisition | -148dBm |
| TTFF (open-sky) | Avg. hot start <1sec | Avg. cold start <35sec |
Network Specifications
| Network Type | 2G |
| Supported Bands | 850/900/1800/1900 MHz |
| Data Transmission | TCP |
| Max Output | GSM850/GSM900:33±3dBm |
| Max Frequency Error | ±0.1ppm |
| SIM Card | Standard Nano SIM |
| LED Indication | Green (Cellular), Blue (GPS) |
Physical Specifications
| Dimensions | 71.9*30.2*12.9mm |
| Weight | 29g |
| Color | Black |
| IP Rating | IP54 Tested in internal lab |
Power Specifications
| Operating Voltage | 9V - 90V DC |
| Standby Current | < 7mA |
| Backup Battery | Built-in 60Mah/3.7V Li-Polymer |
| Battery Life | 30 Minute |
| Operating Temperature | DC -20°C to 70°C |
| Storage Temperature | –30°C to +85°C |
Additional Features
| Server Type | Dual IP Support (Primary1 + Primary2) |
| Data Storage | 32MB Flash Memory |
| Motion Sensor | Accelerometer |
| Alarm Types | Vibration, Over-Speeding, Geo-fence, Power Cut, Ignition On/Off, Low battery, Moving, Driving Behavior Analysis |
| Offline Memory Logs | 1000 location packet |
| Ignition Detection | Wire & motion |
| Chipset | RDA "RDA8955L" |
| * | * We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice. |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
Comprehensive Support
We're with you every step of the way.
Warranty Information
| Warranty Period | 1 Years from date of purchase |
| Coverage | Free replacement for defective units (excluding physical damage) |
| Extended Warranty | Available for purchase (up to 5 years total coverage) |
Technical Support
| Support Hours | 10 am to 6 pm phone and email support |
| Response Time | Within 2 hours for critical issues |
| Support Channels | Email: supportmark@iconcox.in |
Firmware & Updates
| Update Frequency | Quarterly feature updates, monthly security patches |
| Update Method | OTA (Over-the-Air) |
| Compatibility | firmware updates are not backward compatible |
